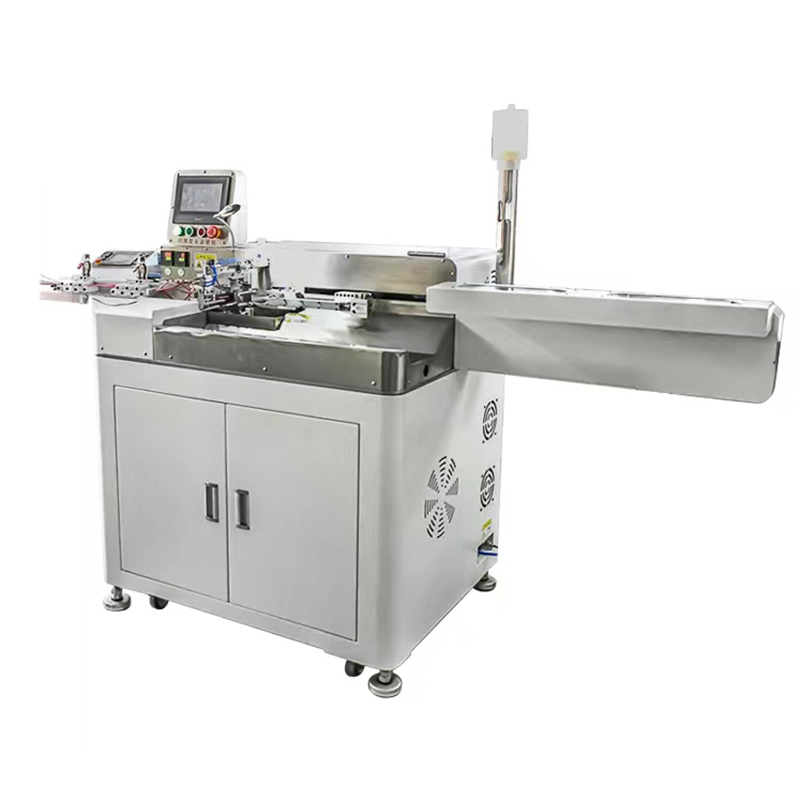

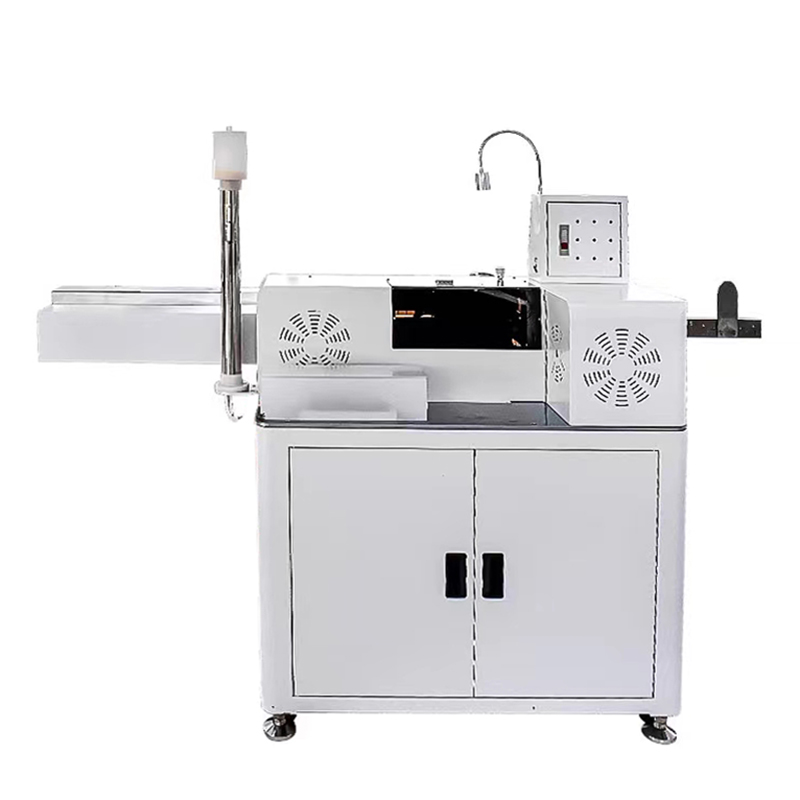

Automatic double-ended tin dipping machine
1. 8 wires can be processed at the same time, the output is up to 8000-11000PCS/H, suitable for AWG#32-AWG#16
electronic wire processing
2.The machine dip the tin in angle 90 degrees, tin mouth full of uniform, accurate dip depth, uniform thickness.
| Name | Automatic double-ended tin dipping machine |
|
Model
|
P02
|
|
Power input
|
AC220V 50HZ/60HZ
|
|
Productive capacity
|
8000-11000pcs/h (depending on the line of sight material)
|
|
Wire range
|
AWG#16-AWG#32
|
|
Features
|
Wire cutting, single-end peeling and twisting wire dip,
double-end peeling and twisting wire dip
|
|
Trim length
|
The longest 800mm, The shortest: 15mm.
|
|
Stripping length
|
0.0 mm-10.0 mm.
|
|
Torsional length
|
3.0 mm-10.0 mm
|
|
Air pressure
|
6kg (Clean, dry air is required)
|
|
Dimensions
|
2120*680*1350(mm)
|
|
Weight
|
About 310 KG
|
