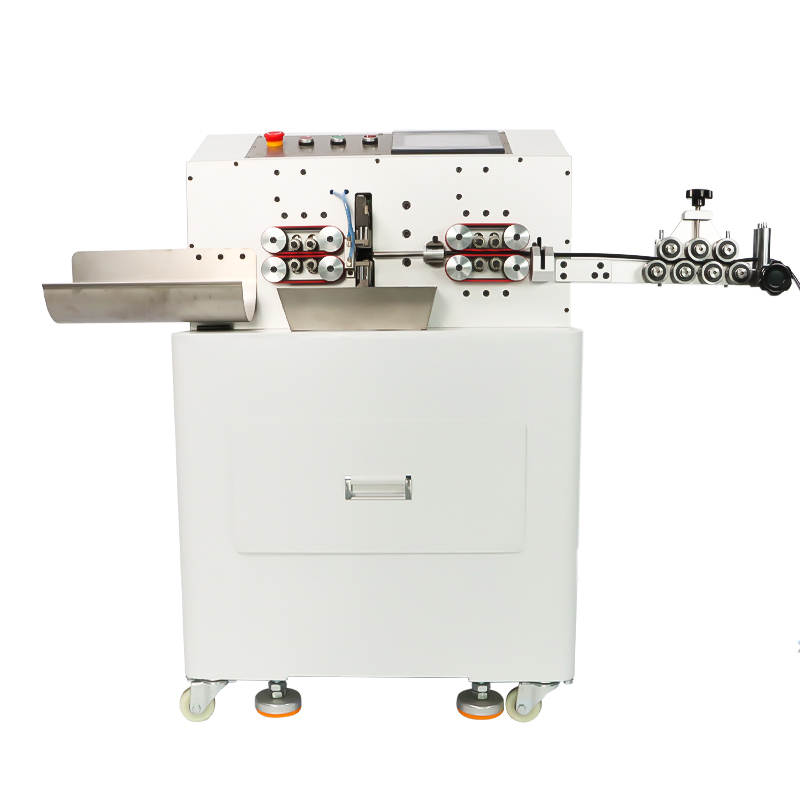

Multi-core cable cutting stripping machine
1.Touch screen operation, can store the program, Chinese and Englishswitch, simple operation, fast response.
2.Automatic wire stripping machine, suitable for 12mmwire, cutting wire, inside and outside stripping. Suitable for wire harness processing in electronics, electrical appliances, toys, motorcycles, communications and other industries.
| Name | Multi-core cable cutting stripping machine |
|
Model
|
C240ME
|
|
Mode of display
|
7 inch true color touch screen
|
|
Functions
|
Cutting, outer skin peeling, inner core wire peeling
|
|
Wire type
|
Electric wire, cable, PVC, etc.
|
|
Wire Stripping Range
|
1-70 square (including sheathing wire below six cores)
|
|
Cutting lenght
|
1-99999.99MM
|
|
Cutting Tolerance
|
Less than 0.002*L
|
|
Stripping length
|
Back end peeling:1-100MM core wire:1-50MM
|
|
Wire tube max size
|
φ16
|
|
Cutter material
|
High quality imported HSS
|
|
Productivity
|
2000pcs/H, (800pcs/H for sheathed wire) depending on thelength and size of the wire
|
|
Driving mode
|
16-wheel drive
|
|
Dimension
|
680*580*1070*MM
|
