Automatic inner stripping and soldering machine for usb cable making Lanke 4 core
Product Introduction
Automatic feeding with the vibrating disc, manual cycloid, automatic conveying, assembling, pressing is completed at one time, the speed is 6 times that manual assembling.

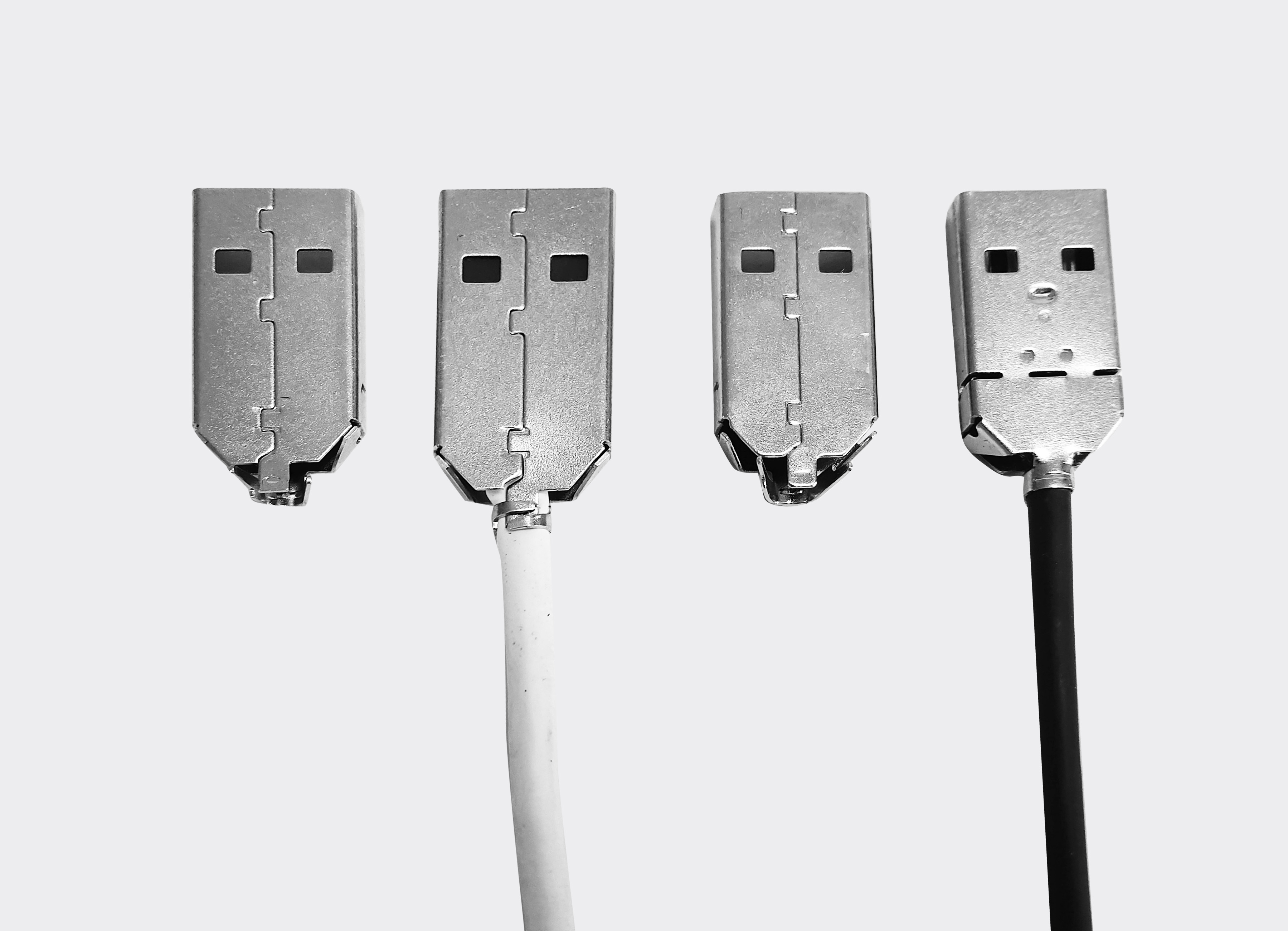

Suitalbe: USB Mini, Type C 2.0/30. HDMI
High productivity : 1200-1800pcs/H
Taiwan Airtac air cylinder, high stability of the machine, easy to operate.
Product Specification
| Model | LK-S04 |
| Voltage | AC220V |
| Power | 200W |
| Air Pressure | 0.4- 0.7MPA |
| Productivity | 1200-1800pcs/H |
| Dimension | 1200*600*1100mm(L*W*H) |
| Mounting | Moving on Ground |
| Temp Control Model | Constant Temperature |
| Weight | About 150 KG |
