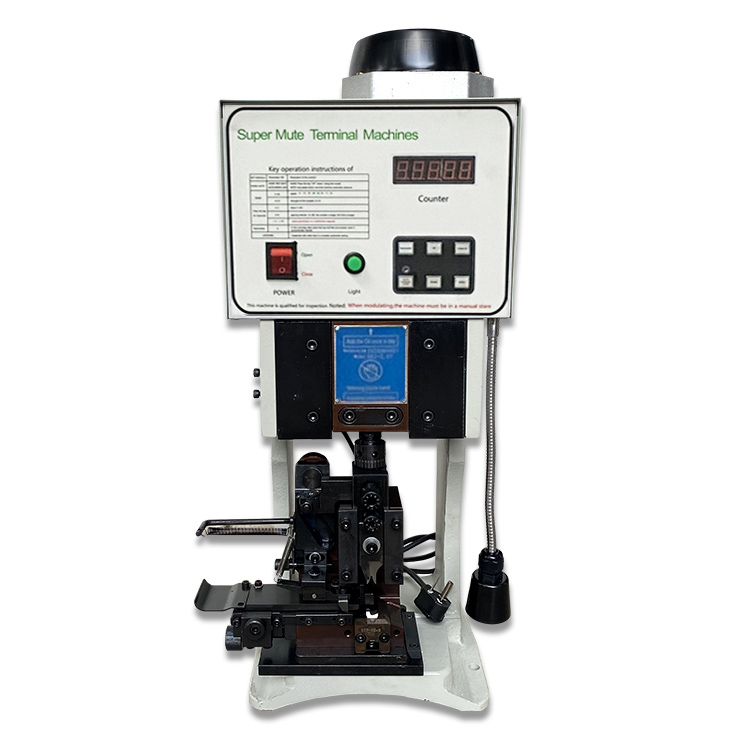

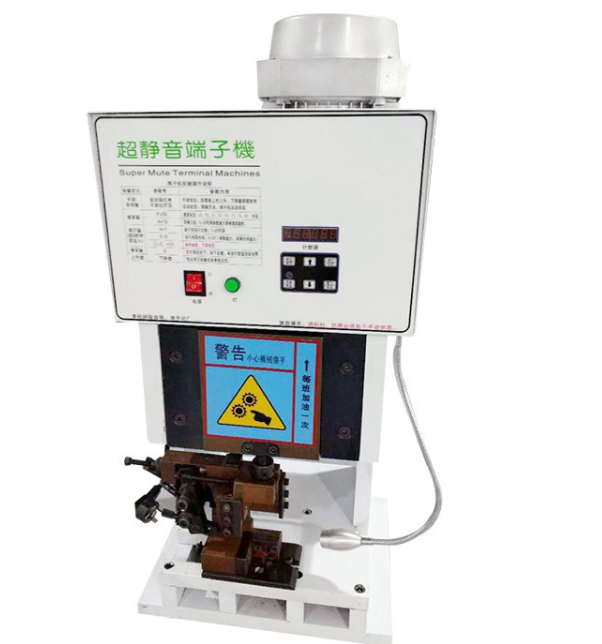

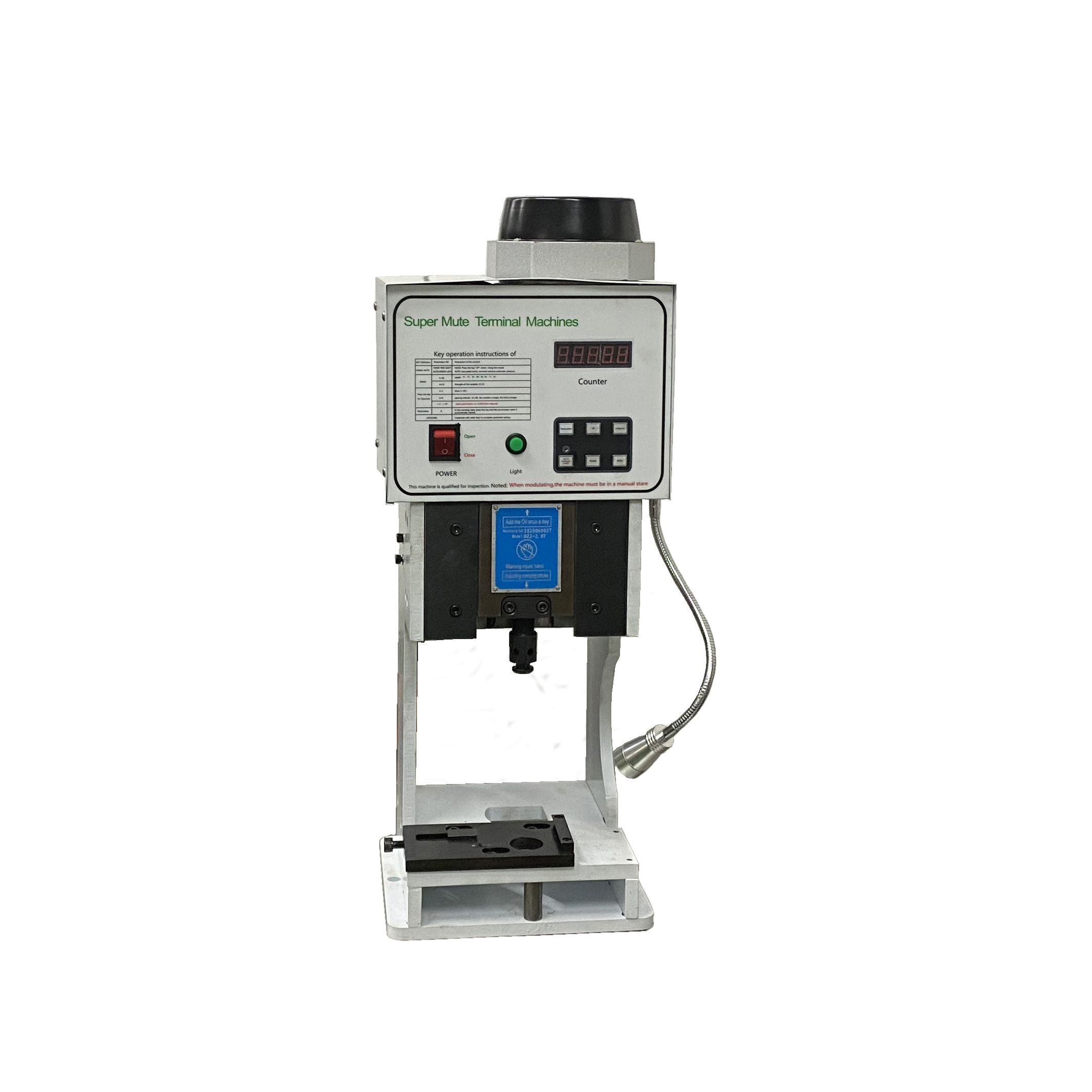

1.5 Manual ferrule terminal crimping semi machine OTP mold mute harness terminal crimping machine
Product Introduction
Semi-Automatic electrical terminal crimping machine end crimping machine horizontal and crimping machine.
Suitable to crimp cables and connectors together.
High stability and easy to operate.
Product Specification
| Type | LK-15T | LK-20T | LK-30T | LK-40T |
| Size | 215*230*600mm | 215*245*640mm | 240*270*700mm | 260*305*740 |
| Pressure | 1.5T | 2T | 3T | 4T |
| Weight | 38KG | 46KG | 66KG | 95KG |
| Average power | 0.35KW | 0.45KW | 0.65KW | 0.85KW |
| Motor Power | 0.55KW | 0.75KW | 1.1KW | 2.2KW |
| Power Supply | 220V 50HZ | 220V 50HZ | 220V 50HZ | 220V 50HZ |
| Stroke | 30MM( customization) | 30MM( customization) | 30MM( customization) | 30MM( customization) |
| Manner of operation | By foot or automation | By foot or automation | By foot or automation | By foot or automation |
